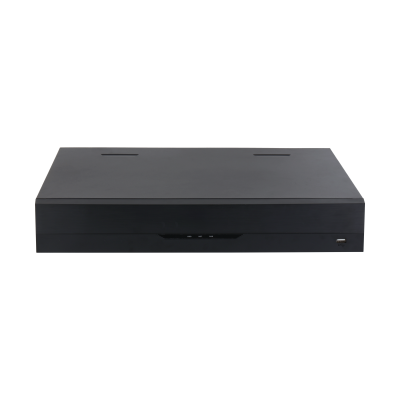

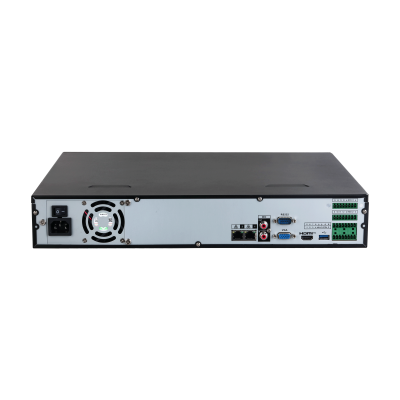

32CH 1U 16PoE 2HDDs WizSense Network Video Recorder

SKU NVR-4232-16P-2K17

Product Detail

The SL-NVR4232-16P-EI is a powerful 32-channel WizSense Network Video Recorder designed for intelligent security monitoring in commercial and enterprise environments. Featuring 16 integrated PoE ports and support for up to 16MP IP cameras, it simplifies system deployment while delivering exceptional image quality. Advanced Smart H.265+ compression technology reduces bandwidth and storage requirements without compromising video performance. The recorder supports AI-powered face detection and recognition, perimeter protection, ANPR, people counting, stereo analysis, heat map analytics, and SMD functions for enhanced situational awareness. With dual SATA storage bays, high-bandwidth recording performance, 4K video output, alarm integration, audio connectivity, and Gigabit Ethernet networking, the SL-NVR4232-16P-EI provides a comprehensive surveillance solution for demanding security applications.

Product Highlights

32 Channel WizSense Network Video Recorder
16 Built-In PoE Ports For Easy Camera Installation
Supports Up To 16MP Ultra HD IP Cameras
Face Recognition, ANPR & Advanced AI Analytics
Dual SATA Bays Supporting Up To 40TB Storage
4K HDMI Output With Alarm & Audio Integration

Technical Specifications

The SL-NVR4232-16P-EI is an enterprise-grade WizSense network video recorder that combines advanced AI analytics, integrated PoE connectivity, ultra-high-resolution camera support, large-capacity storage, and comprehensive alarm management for intelligent surveillance applications.

Model
: SL-NVR4232-16P-EI
Category
: WizSense NVR
Product Type
: 32CH 1U 16PoE 2HDDs WizSense Network Video Recorder
Video Compression
: Smart H.265+ / H.265 / Smart H.264+ / H.264 / MJPEG
Maximum Decoding Capacity
: 16 × 1080p@30fps Or 4 × 8MP@30fps (AI Disabled)
Bandwidth (AI Disabled)
: 256 Mbps Incoming / 256 Mbps Recording / 256 Mbps Outgoing
Bandwidth (AI Enabled)
: 180 Mbps Incoming / 180 Mbps Recording / 180 Mbps Outgoing
Maximum IP Camera Resolution
: Up To 16 MP
Storage
: 2 HDD Bays
Disk Interface
: 2 SATA Ports, Up To 20 TB Each
Maximum Storage Capacity
: Up To 40 TB
PoE Ports
: 16 Ports, 10/100 Mbps, IEEE 802.3af/at
Face Detection & Recognition
: 1-Channel Face Detection & Recognition
Perimeter Protection
: 2-Channel Perimeter Protection
Face Databases
: Up To 10 Databases
Face Image Capacity
: Up To 20,000 Face Images
SMD Plus
: 4-Channel SMD Plus
AI By Camera
: Face Detection, Face Recognition, Perimeter Protection, SMD, ANPR, People Counting, Stereo Analysis & Heat Map
Video Output
: 1 HDMI (Up To 3840 × 2160), 1 VGA
Network Port
: 1 × 10/100/1000 Mbps Ethernet (RJ-45)
Audio Input
: 1-Channel RCA
Audio Output
: 1-Channel RCA
Alarm Inputs
: 4 Channels
Alarm Outputs
: 2 Channels
USB Ports
: 2 × USB 2.0 (1 Front, 1 Rear)
RS-232
: 1 Port
Power Supply
: 100–240 VAC, 47–63 Hz
Power Consumption
: NVR <10W (Without HDD), PoE Total 130W, Max 25.5W Per Port
Product Dimensions
: 375.0 × 329.3 × 53.0 mm
Net Weight
: 2.60 kg
Operating Temperature
: –10°C To +55°C
Operating Humidity
: 10%–93% RH, Non-Condensing
Certifications
: CE-EMC EN 55032, CE-LVD EN 62368-1, FCC Part 15 Subpart B Class A
