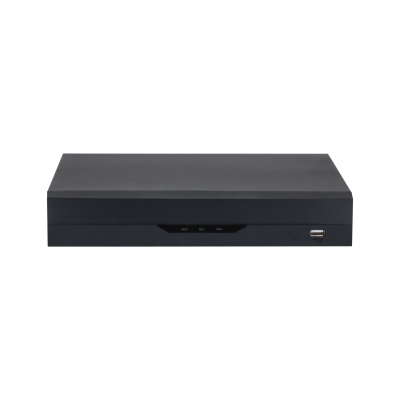

4CH Compact 1U 4PoE 1HDD Lite Network Video Recorder

SKU NVR-4104HS-P-2K16

Product Detail

The SL-NVR4104HS-P-4KS3 is a compact yet powerful 4-channel Lite Series Network Video Recorder designed for intelligent surveillance applications. Featuring four integrated PoE ports, the recorder enables easy camera installation while reducing cabling complexity. Supporting Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG compression technologies, it optimizes storage efficiency without compromising image quality. With support for up to 12MP IP cameras, advanced AI functions including face detection, face recognition, perimeter protection, SMD Plus, people counting, stereo analysis, and heat map generation, the NVR provides comprehensive security intelligence. Additional features such as EPTZ, one-click arming/disarming, HDMI and VGA video outputs, and support for up to 20TB storage make it an ideal solution for residential, commercial, and retail surveillance systems.

Product Highlights

4 Channel Compact Lite Network Video Recorder
4 Built-In PoE Ports For Easy Camera Installation
Supports Up To 12MP IP Camera Resolution
Face Recognition, Perimeter Protection & SMD Plus AI
EPTZ Support With One-Click Arming & Disarming
8 × 1080p@30fps Real-Time Video Decoding

Technical Specifications

The SL-NVR4104HS-P-4KS3 combines intelligent AI analytics, efficient video compression, PoE connectivity, flexible storage support, and advanced surveillance functions in a compact network video recorder designed for modern security applications.

Model
: SL-NVR4104HS-P-4KS3
Product Type
: 4CH Compact 1U 4PoE 1HDD Lite Network Video Recorder
Video Compression
: Smart H.265+ / H.265 / Smart H.264+ / H.264 / MJPEG
Maximum Decoding Capacity
: 8 × 1080p@30fps Or 4 × 4MP@30fps
Incoming Bandwidth
: 80 Mbps
Recording Bandwidth
: 80 Mbps
Outgoing Bandwidth
: 60 Mbps
Maximum IP Camera Resolution
: Up To 12 MP
Storage
: 1 HDD Bay
Disk Interface
: 1 SATA Port, Up To 20 TB
PoE Ports
: 4 Ports, 10/100 Mbps, IEEE 802.3af/at

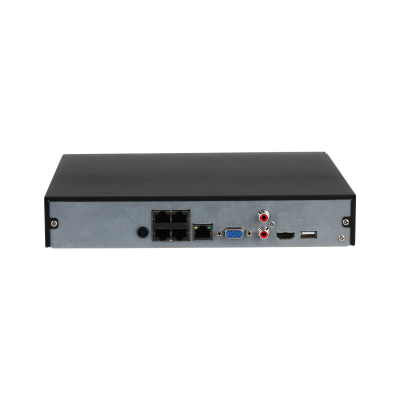

Video Output
: 1 HDMI, 1 VGA
Network Port
: 1 × 10/100 Mbps Ethernet (RJ-45)
AI By Recorder
: 4-Channel SMD Plus
Face Detection
: Supported
Face Recognition
: Supported
Perimeter Protection
: Supported
People Counting
: Supported
Stereo Analysis
: Supported
Heat Map
: Supported
Additional Functions
: EPTZ & One-Click Arming/Disarming
Power Supply
: 53 VDC, 1.22 A
Dimensions
: 260.0 × 232.5 × 47.6 mm
Application
: Residential, Retail, Commercial & Office Surveillance
